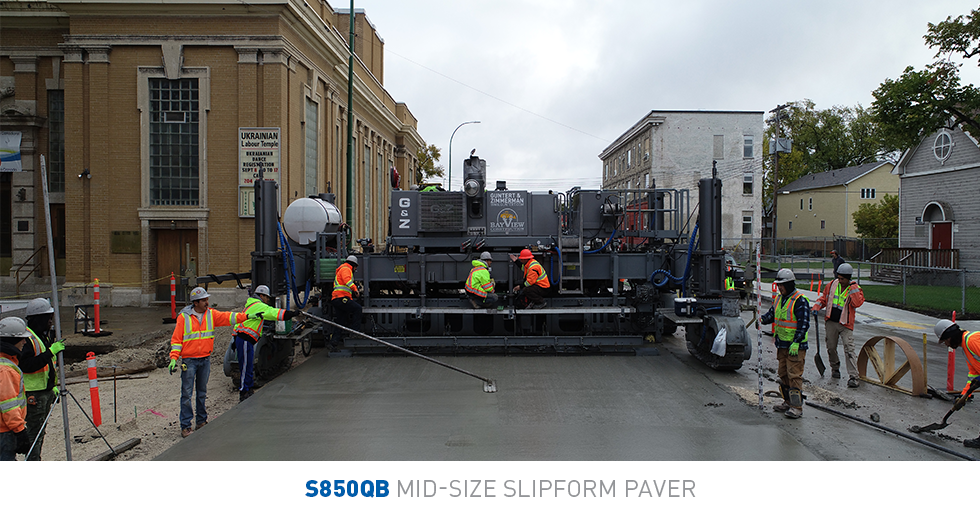

The versatile S850 Quadra Bolster Concrete Slipform Paver is designed to be the paver of choice for all your paving needs from 12 ft. to 34 ft. (3.5 m to 10.36 m). With optional tractor frame extensions, the S850QB paver is capable of paving widths up to 41 ft. (12.5 m). The S850QB is agile enough for economic use on cut up urban and residential paving work without sacrificing the weight, power, and balance required to produce superior riding highway and airport concrete pavements. The S850QB has its weight in all the right places. It has the weight of a mainline slipform paver and the agility of a smaller machine. The machine's center of gravity and the rear of the slipform conforming pan are almost perfectly centered between the front and rear crawler tracks.
The S850QB paver is equipped with counter rotation capability like all G&Z pavers, where the operator can quickly re-orientate the S850 crawlers into the counter-rotate position and rotate the machine 360 degrees withing the machine's overall width. Investment in S850 has never been more compelling.
The patented Quadra bolsters allow for two modes of paving: the "extended mode" for normal paving or the "compressed mode" for paving in tight radius paving. Quadra bolsters allow for two modes of transport: the "extended mode" for straddling and self-loading on a drop deck trailer and the "compressed mode" for walking and steering (with our without the paving kit) onto a 10 ft. (3.04m) wide trailer.
